Moddable Six

Advanced touch screen with audio, Wi-Fi, and BLE

Designed and built for developers

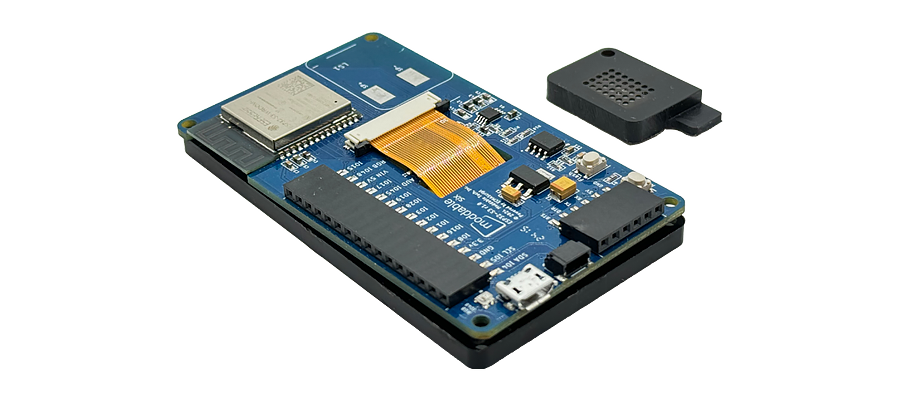

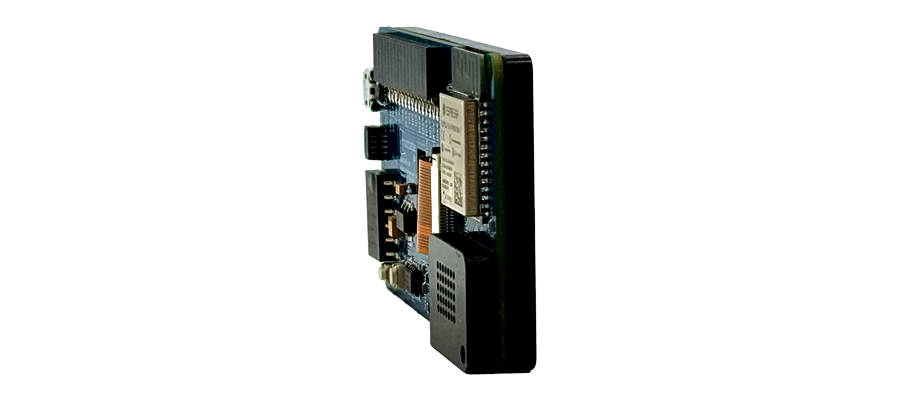

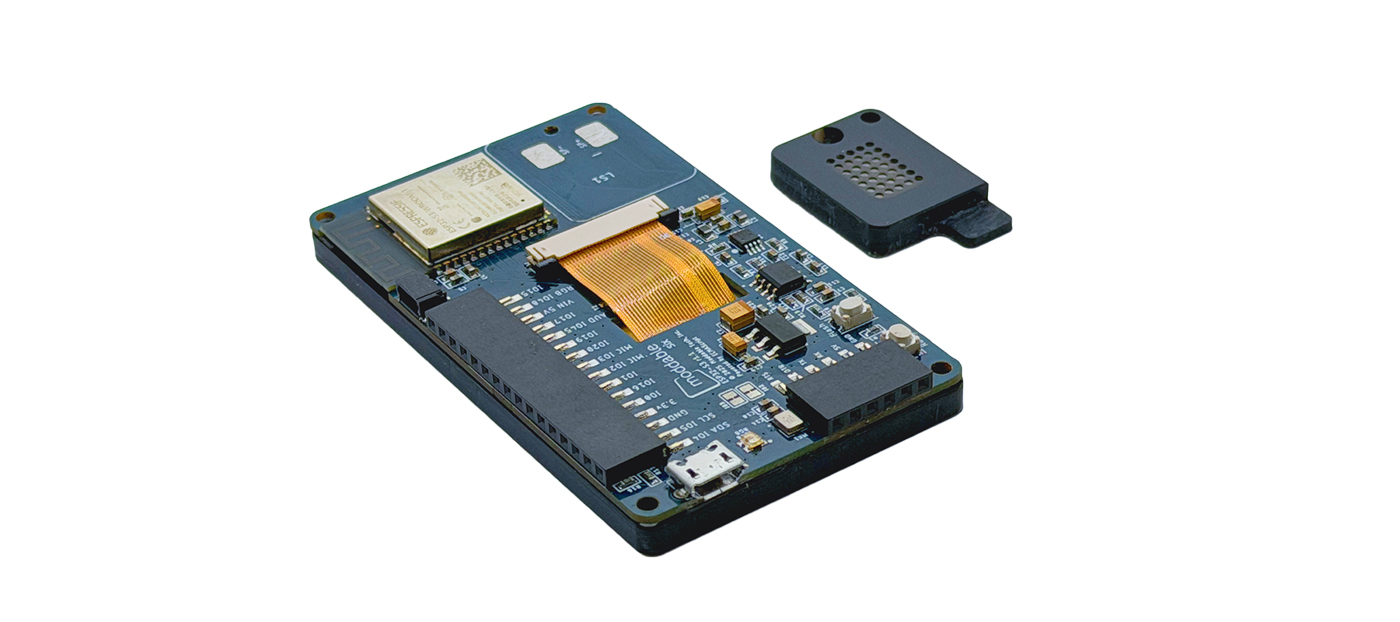

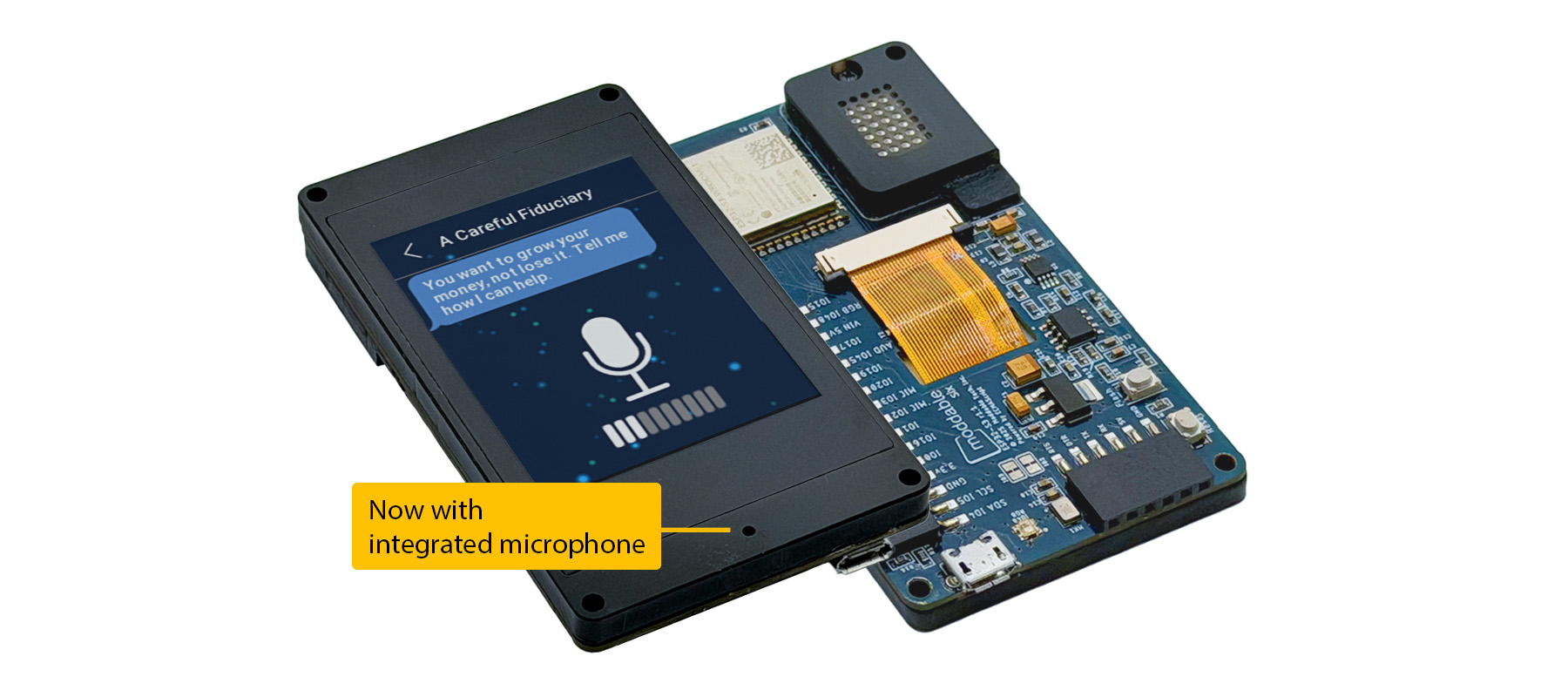

Moddable Six is powered by the popular ESP32-S3 240 MHz Xtensa processor (dual core), integrated Wi-Fi and BLE 5.0, 8 MB of flash memory, 8 MB PSRAM and 520 KB of RAM. Its bright 2.4" QVGA IPS display has a backlight control and a capacitive multi-touch screen. This display is driven with a parallel interface for blazing speed. Also Tearing Effect hardware has been enabled for ultra-smooth animation and screen rendering.

Moddable Six is powerful enough for the most demanding projects, and features many advanced development options because it is built on the ESP-IDF SDK.

Purchase $29.99

Moddable Six Specifications

  • ESP32-S3 microcontroller
    • Dual core, 240 MHz Xtensa processor
    • Wi-Fi
    • BLE 5.0
    • 520 KB RAM
    • 8 MB PSRAM
    • 8 MB flash
  • 2.4” LCD display
    • High brightness IPS display
    • Looks great from every angle
    • 240 x 320 pixels (QVGA)
    • Portrait and landscape orientations
    • 16-bit color
    • ST7789 display controller
    • Backlight brightness control
    • GT911 capacitive multi-touch controller
    • High-speed 8-bit parallel display bus
  • Audio
    • Built-in speaker
    • Filtering and PAM8302 amplification circuits
    • Audio signal on external header
  • 20 pins for external components
    • Digital, I²C, SPI, PWM, analog input, pulse count
    • Qwiic/Stemma QT I2C connector
    • RGB NeoPixel LED
  • Power
    • 3.3V and 5V outputs
    • 5V input
  • Moddable Programmer port
    • Debug native code with gdb
    • Install project firmware (alternative to Micro-USB)

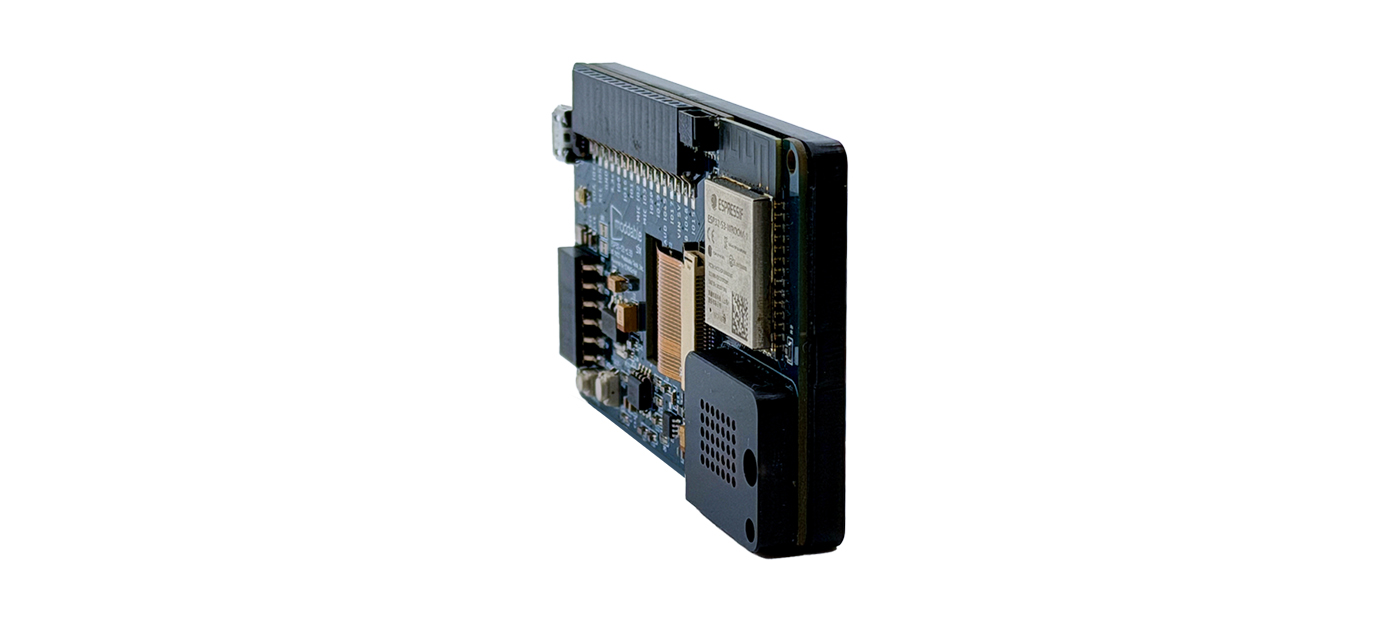

  • Fits into your project design
    • Thin form factor
    • Mounting holes
  • Moddable SDK
    • Modern, industry standard JavaScript for rapid development of robust, secure firmware
    • Native C code for performance and integrating existing libraries
    • Industry standard Web Workers API to make full use of both CPU cores
    • Piu UI framework for building touch user interfaces
    • Rendering extensions for SVG outlines, QRCodes, and animated GIF
    • Use any TrueType/OpenType font
    • ECMA-419 APIs for I/O
    • Compatible with ECMA-419 sensor drivers
    • Secure TLS connections with HTTP, WebSockets, and MQTT
    • Local networking with mDNS
    • Fully open source – available on GitHub
    • Thoroughly documented
    • Hundreds of example apps
    • Supports mods for fast development and quick updates
  • Node-RED MCU Edition
    • Fully supports Node-RED MCU Edition
    • Quickly build UIs with Node-RED dashboard
    • Run huge projects with built-in 8MB PSRAM

This is a video capture of the Moddable Six running an app. Notice the smooth transition movement between screens that is available due to the extremely fast redraw rate of 60+ FPS.

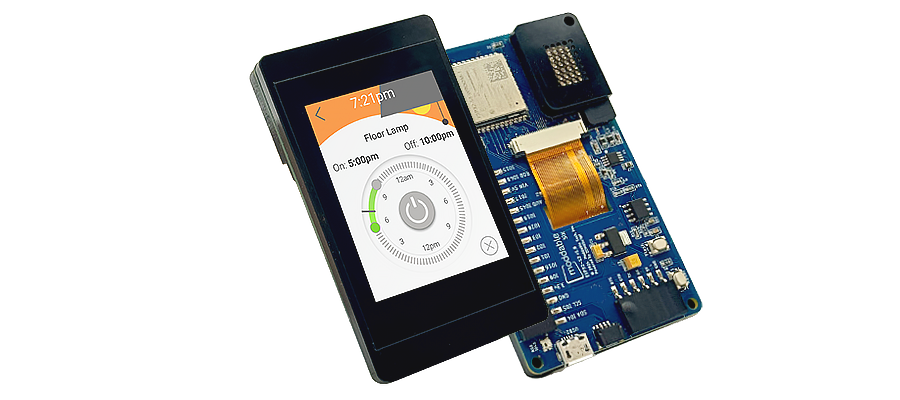

Advanced Display Technology

Moddable has long led the way in delivering the highest quality user experience possible on low-cost microcontrollers. Moddable Six raises the bar in several important ways with a combination of thoughtful hardware design and sophisticated software.

The IPS display is connected to the ESP32-S3 using a high-speed parallel bus that delivers nearly 10 million pixels a second, easily supporting animation at 60 FPS (and beyond). The display provides a "tearing effect" output that makes flicker-free animation possible by synchronizing drawing to the hardware refresh, just like mobile phones.

An all-new display driver has been implemented to ensure the Piu UI framework and Poco renderer can take full advantage of the high speed, flicker-free display with minimal CPU overhead. The display driver also supports dynamic frame rate control.

The GT911 touch controller in Moddable Six has a touch interrupt indicating when new touch data is available. Moddable Six uses this to reduce the CPU overhead of touch input by eliminating polling for touch events. The updated ECMA-419 GT911 driver fully supports the touch interrupt.

The result of all these technical achievements is the kind of smooth, responsive user experience that delight customers.

Moddable Six Pinouts

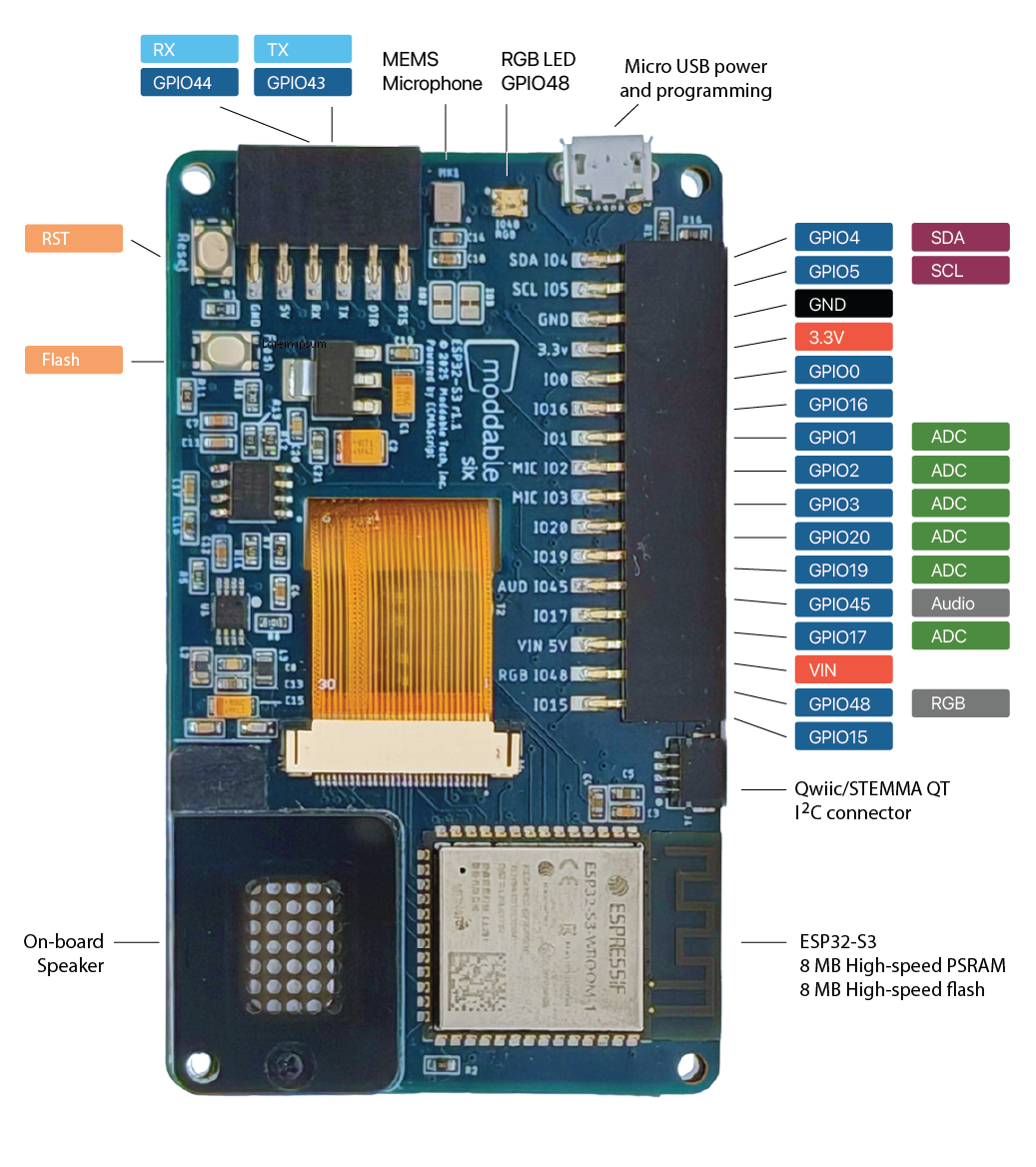

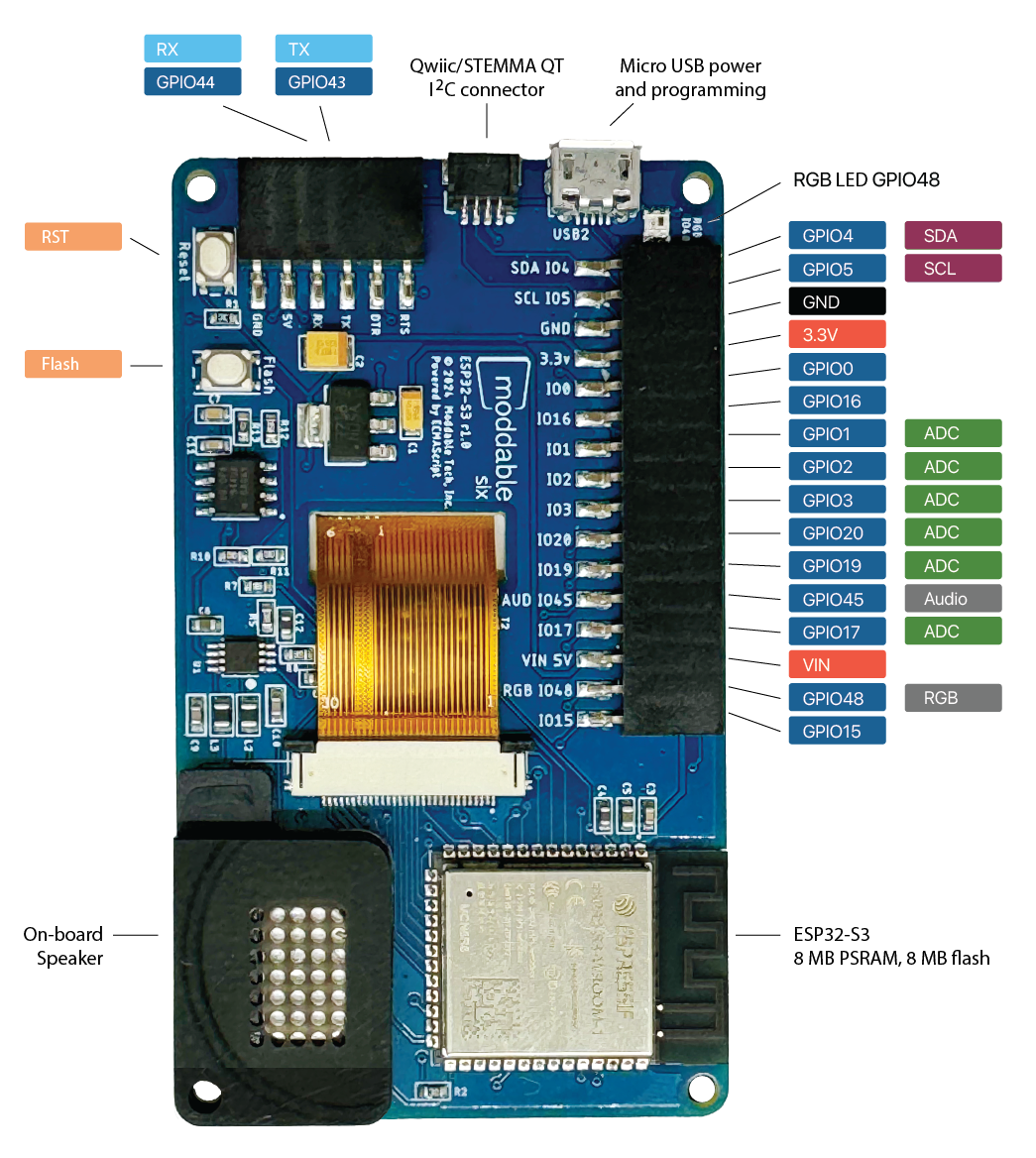

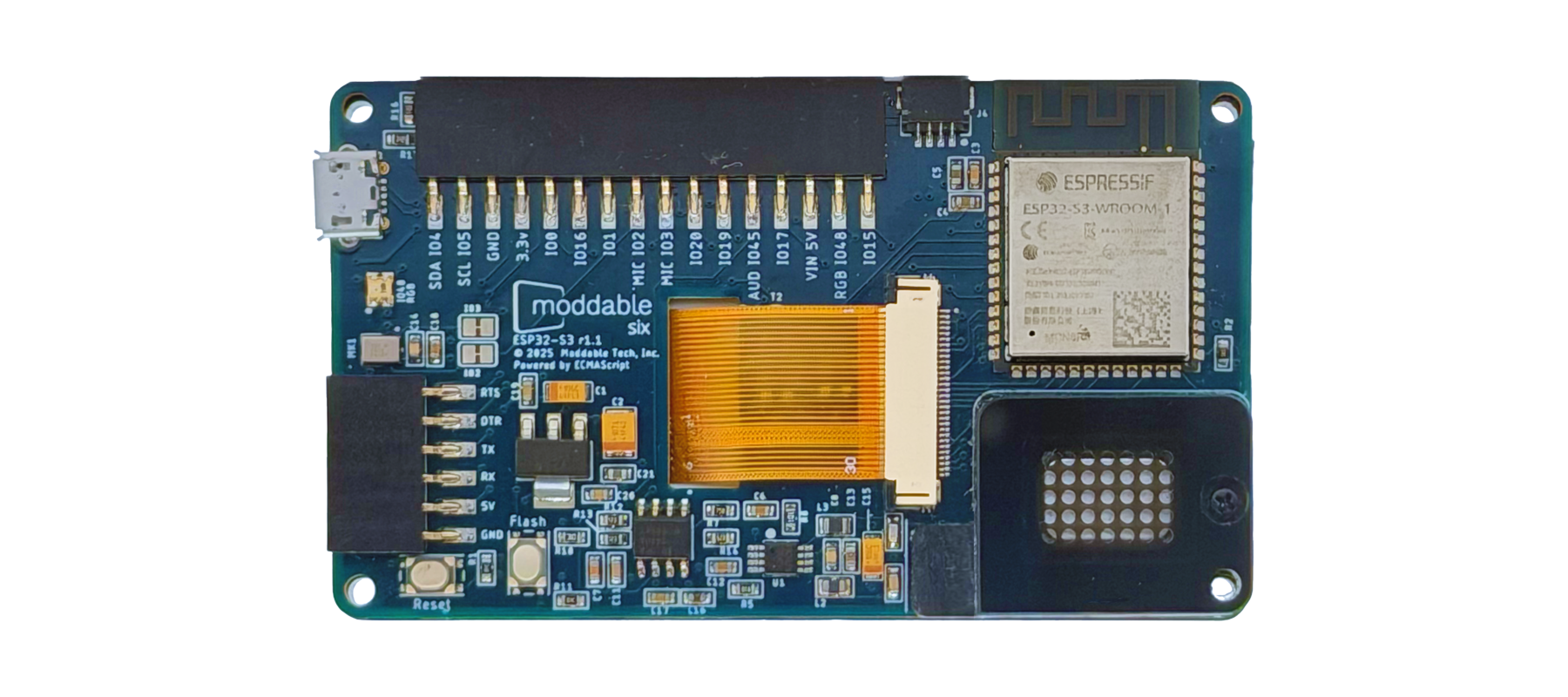

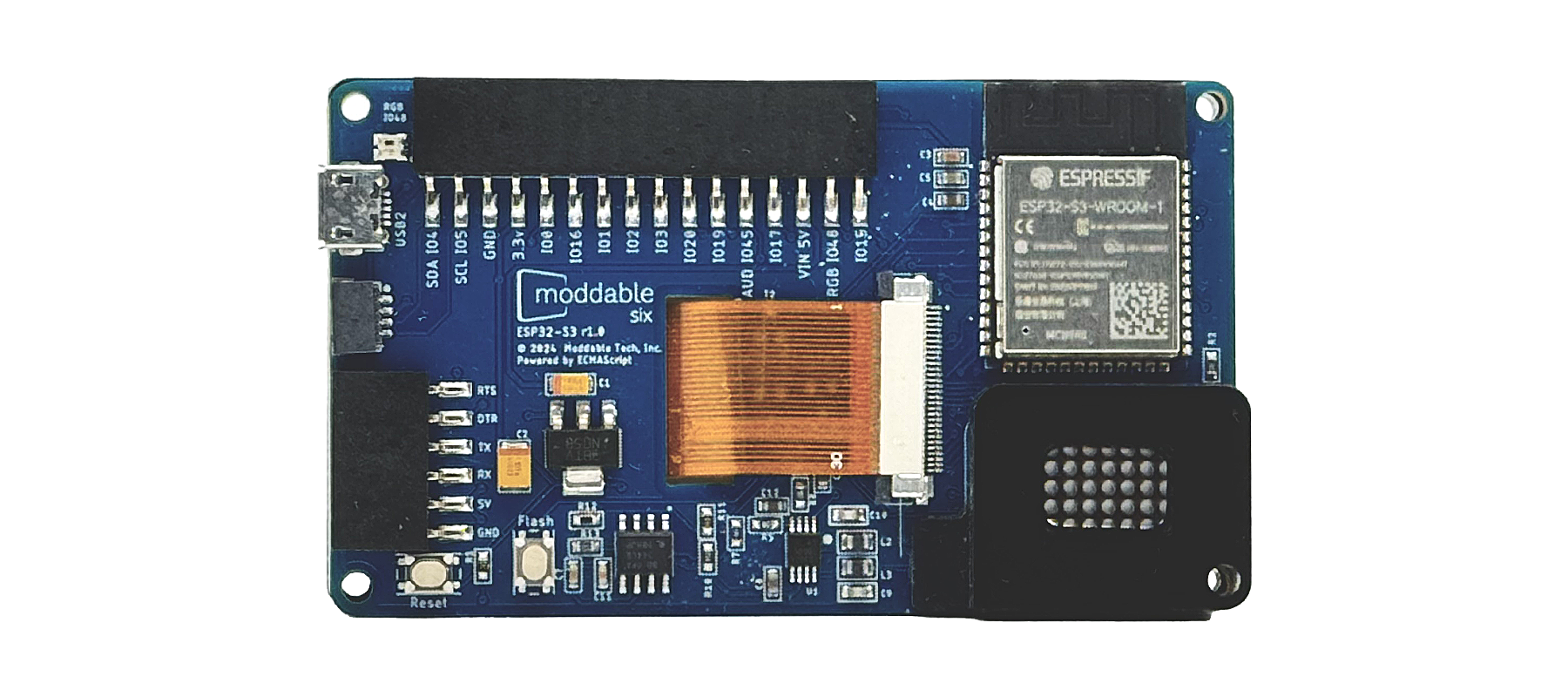

The expansion header on Moddable Six has thirteen programmable pins that allow you to communicate with variety of peripherals using digital, analog input, PWM, RMT, I²C, and SPI. There's also 3.3V, 5V, and ground pins to power your peripherals.

The programmer header has four additional pins which you can use for serial or digital IO when using the Micro-USB port for power and programming.

For convenience, there's also a built-in RGB LED and programmable push button.

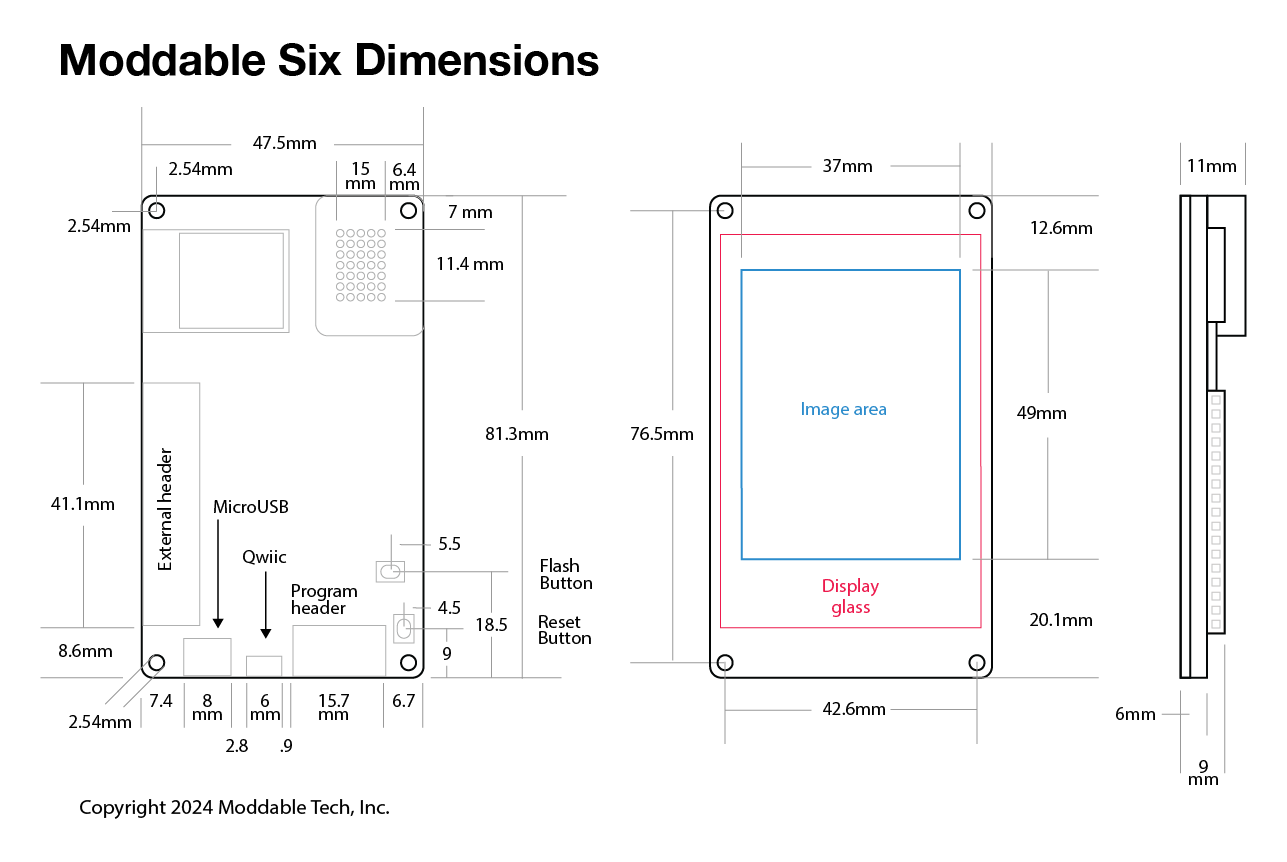

Moddable Six Dimensions
